Allen-Bradley Studio 5000 productivity tools

Build new Logix projects faster. Modernize converted ones safely.

Corevanta turns repetitive Studio 5000 work into structured, reviewable L5X workflows—from generating standardized routines to replacing converted PLC-5 addresses with descriptive tags.

Compare the tools Programming services See how it works

L5X workflows
Ladder + function block
PlantPAx + custom AOIs
PLC-5 conversions

Logix Bulk Builder

Template → Excel → repeatable L5X routines

AB Legacy Tag Updater

I[10].2 → Rack10:3:I.Data.0

Built for controls engineers working in Studio 5000

Template-driven developmentgenerate consistent repeated routines

Legacy modernizationreplace converted PLC-5 references safely

Reviewable project datawork in the application or Excel

Choose the workflow that matches the project

Two tools. Two different sources of repetitive Logix work.

Use Bulk Builder when one proven routine needs to become many consistent instances. Use Legacy Tag Updater when converted PLC-5 addresses need to become maintainable Studio 5000 tags across multiple routines.

Logix Bulk Builder

Build

Logix Bulk Builder

Create repeatable ladder and function block routines from a validated L5X template. Configure tag mappings, descriptions, optional logic, custom AOIs, and PlantPAx values directly or through Excel.

RLL and FBD routine generation
Custom AOI and PlantPAx configuration
Excel collaboration and bulk editing

$995one-time · one computer

Download 14-day trial Purchase

Converted TagNew Tag / OperandCheck

I[10].2Rack10:3:I.Data.0Ready

B3[0].5FlushLatch1Ready

T4[2]MotorSealInDelayReady

N10[15].1HMI_MotorFeedback1Ready

Modernize

AB Legacy Tag Updater

Analyze converted PLC-5 references across one or more L5X routines, remap legacy I/O to current Logix module addresses, replace internal references with descriptive tags, and generate an ordered import package.

I, O, B, T, C, N, and F data files
Multiple routines from one controller
Existing descriptions preserved and editable
Controller-tag conflict and data-type checks
Required I/O remapping to Logix module addresses

$995one-time · one computer

Download 14-day trial Purchase

Logix Bulk Builder

Start with logic you already trust.

Corevanta builds from your own Studio 5000 routine, so the generated instances keep the structure and standards your team has already established.

Create the template

Build and validate one representative routine in Studio 5000 using the tags, instructions, AOIs, and descriptions your project requires.

Export the routine

Export the ladder or function block routine as an L5X file. Corevanta analyzes its logic, tag references, and configurable values.

Build and edit instances

Create the required routines, remap I/O and existing tags, include optional logic, and edit parameters directly or through Excel.

Generate and import

Generate the new L5X package and import it into Studio 5000 for review, validation, and commissioning.

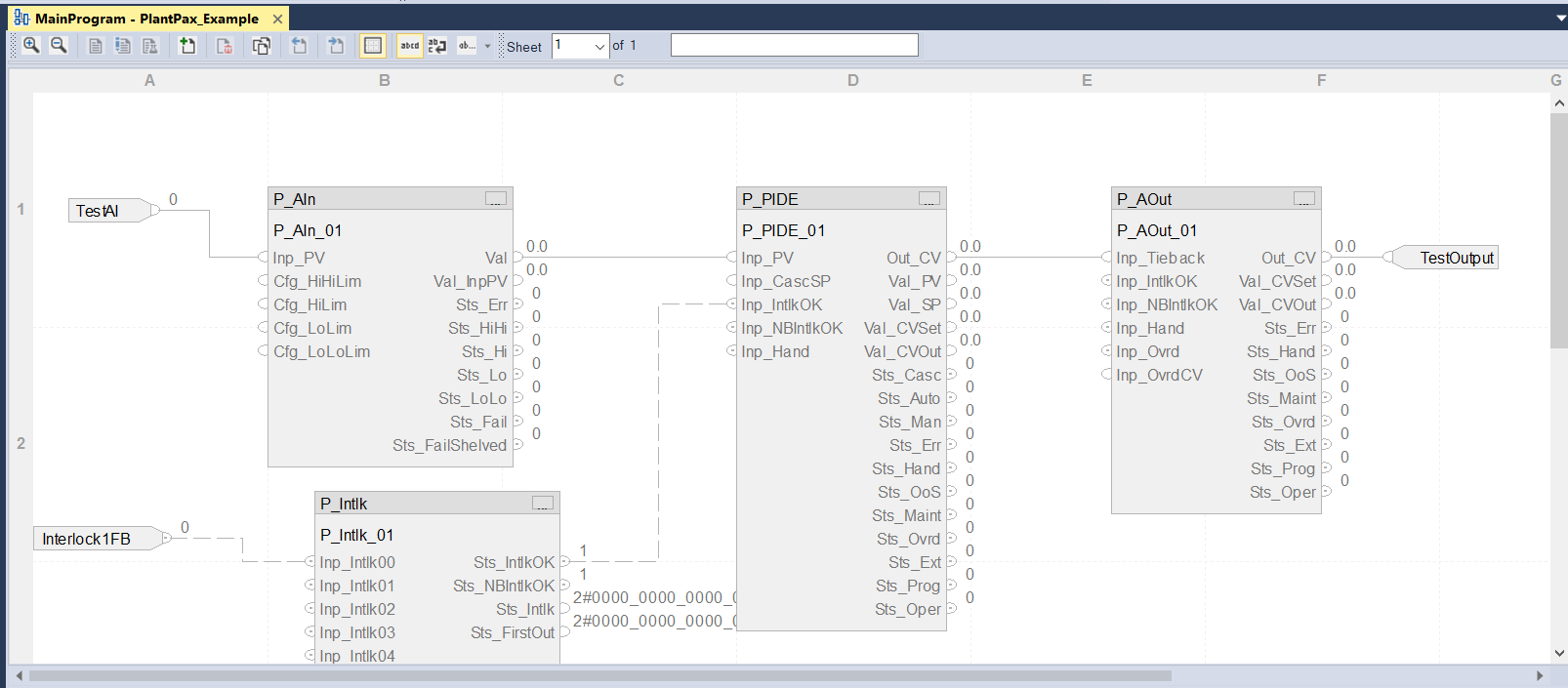

Studio 5000 function block routine containing PlantPAx P_AIn, P_Intlk, P_PIDE, and P_AOut instructions

Reusable project data

Instance names, tag mappings, descriptions, and parameters become structured fields.

Edit in the application
Export a purpose-built Excel workbook
Distribute configuration work across team members
Reimport and generate consistent routines

Built for real Logix projects

Bulk generation that understands more than tag names.

Use the same workflow for straightforward motor routines, multi-rung templates, function block sheets, and parameter-heavy AOI applications.

RLL + FBD

Ladder and function block workflows

Generate separate routines or organize repeated instances together. Preserve routine logic while changing the project-specific operands around it.

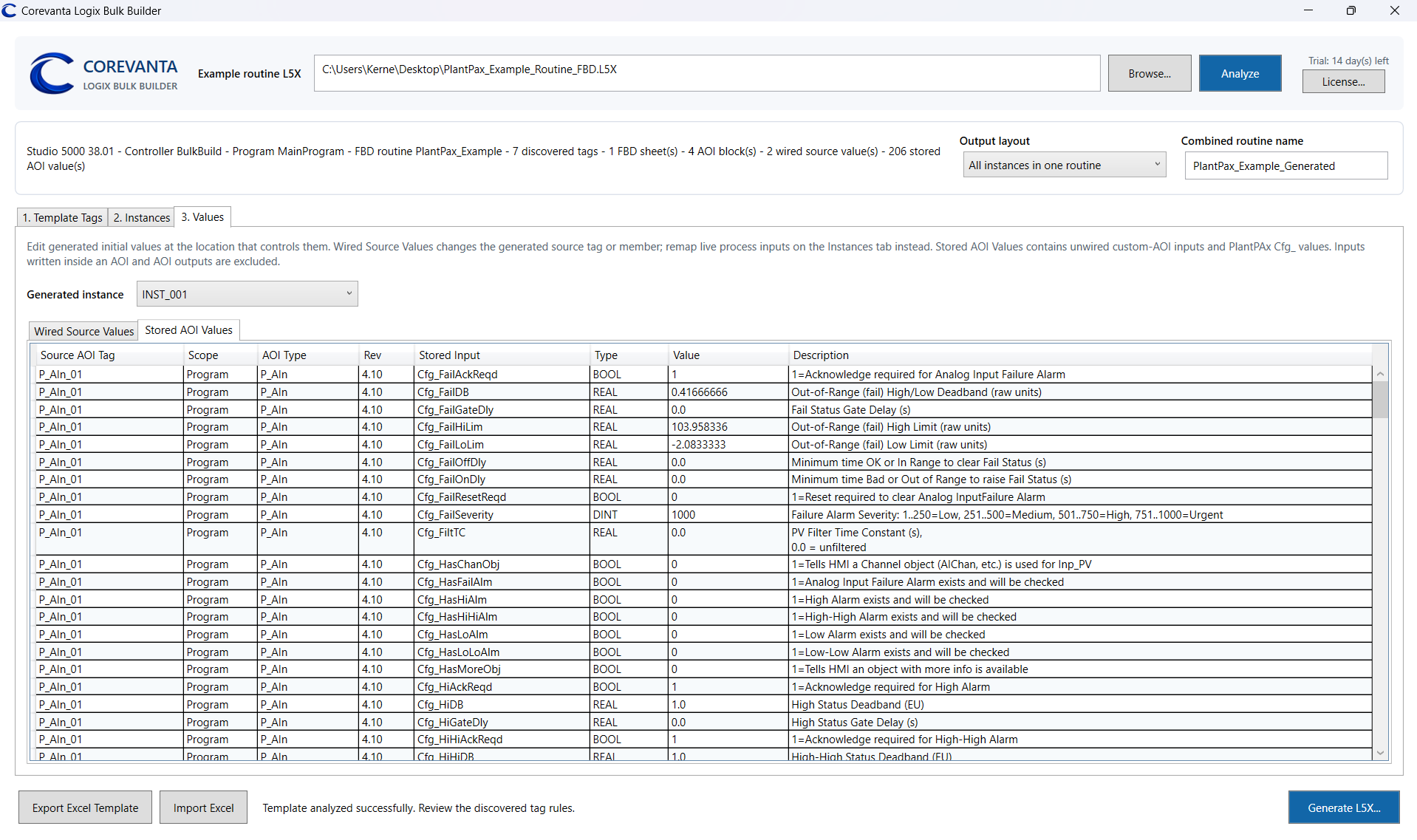

PlantPAx

Expose the values that drive each instance

Review and edit stored PlantPAx Cfg_ values alongside wired source mappings, including ranges, alarm behavior, timing, and other instance configuration.

Custom AOIs

Work with your own instruction library

Corevanta discovers custom AOI blocks and exposes writable, unwired input values for each generated instance while leaving outputs and internally written values protected.

Optional logic

Fit one template to different field devices

Include or exclude optional contacts and generated tags for instance-specific permissives, interlocks, and other variations without rebuilding the routine.

Project data

Keep names and descriptions intentional

Control generated routine names, tag names, scopes, data types, operands, and descriptions before the L5X ever reaches the controller project.

A better handoff than copy-and-paste

Turn repetitive programming into a reviewable team workflow.

Export the analyzed template to Excel, divide configuration work by area or equipment group, then bring the completed data back into one generation process.

Standardize repeated routines around a common design
Let engineers review project data without opening every rung or sheet
Reduce manual rename and find-and-replace work
Make late project-wide edits from a structured workbook

Bulk Build.xlsx4 instances

InstanceRoutineRangeInterlock

LIC_101Area1_Level0–100%INTLK_101

LIC_102Area1_Level0–240 inINTLK_102

LIC_201Area2_Level0–100%INTLK_201

LIC_202Area2_Level0–180 inINTLK_202

Ready to import

AB Legacy Tag Updater

Replace converted PLC-5 addresses without chasing references routine by routine.

Select one or more L5X routine exports from the same controller. The application finds converted legacy operands, combines their references into a reviewable mapping, and applies approved tags and current module-defined I/O addresses consistently across every selected routine.

Analyze togetherAggregate references spread across multiple routines before deciding on a replacement.

Keep the contextPreserve existing descriptions from converted tags, then review and modify them directly in the application or through Excel.

Check before importCompare proposed names against an exported controller-tag list and flag conflicts.

Remap physical I/OReplace converted PLC-5 input and output operands with the correct Logix module-defined addresses, then generate new L5X outputs without overwriting the originals.

$995 USDOne-time perpetual license for one computer · 14-day trial available

Download 14-day trial Purchase perpetual license

AB Legacy Tag Updater4 routines analyzed

Converted TagNew Tag / OperandRefs

I[10].2Rack10:3:I.Data.08

B3[0].5FlushLatch16

T4[2]MotorSealInDelay4

C5[1]ErrorCounter19

N10[15].1HMI_MotorFeedback13

Tag safety check complete · Ready to generate

Logix Bulk Builder licensing

Try Bulk Builder on your own routine.

Analyze a real routine and validate the generated result in your Studio 5000 environment.

14-day trial

Evaluate the full workflow

For controls engineers testing Bulk Builder with their own L5X routines.

No credit card required
Ladder and function block templates
Excel import and export
L5X generation

Download Free Trial

Commercial license

Use Bulk Builder on active projects

$995 USD

One-time purchase · Perpetual license · One computer

Machine-bound commercial licensing with secure Stripe checkout and in-app activation. No subscription.

Commercial and production project use
Full Excel import/export and L5X generation
Local Windows desktop application
Activation using your purchaser email
Support from Corevanta LLC

Purchase perpetual license

Need team or site licensing? Contact sales.

Practical details

Designed to fit the Studio 5000 workflow.

Does Bulk Builder modify my ACD project directly?

No. It works with exported L5X routines and generates L5X output for you to import and review in Studio 5000.

Which tool should I use?

Use Logix Bulk Builder to create many consistent routines from one validated template. Use AB Legacy Tag Updater to replace converted PLC-5 operands with descriptive Studio 5000 tags across existing routines.

Does Legacy Tag Updater change my original L5X exports?

No. It analyzes the selected exports and writes new, ordered L5X output files. You review and import those files into Studio 5000.

Does it support PlantPAx and custom AOIs?

Yes. It can expose stored PlantPAx configuration values and writable, unwired custom AOI inputs. The required AOI definitions must already exist in the destination project.

Can multiple people work on the configuration?

Yes. The Excel workflow makes the generated instances, mappings, descriptions, and configurable values easier to divide, review, and consolidate.

Is the commercial license a subscription?

No. The $995 USD commercial license is a one-time purchase for perpetual use on one computer. Contact sales for team or site licensing.

What happens when the trial ends?

You can still open the application and analyze templates, but Excel import/export and L5X generation require an active commercial license.

Start with the project in front of you

Build repeated logic or modernize converted tags.

Try Bulk Builder Try Legacy Tag Updater
